CRIMSON RS series WP MAXI 16″,17″

WP MAXI



name WP MAXI

02-16

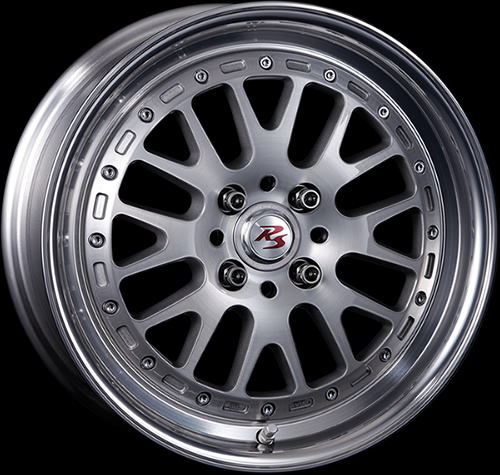

WP MAXI is mechanical design,

characterized by thick mesh fused to

MONOBLOCK-step-rim,

and the dimples arranged effectively.
Emphasized the joint of rim&disk in pierce-bolt,

the design is not inferior to multi-piece wheels.

The [BRUSHED] is a two-tone finish,

with brushed-finish to disk,

and buff-finish to rim.
Stuck in texture of aluminum-meterial.

Also we prepared distinctive 7 colors variations,

including new colors adopted for the first time

[MAT HYPER]

[SMOKE CLEAR]

[RED CLEAR]

The aluminum emblem,

and the cap like center-lock,

and the aluminum-valves,

will produce the racing atmosphere.
The aluminum emblem is shipped with two colors,

[SMOKE LOGO] and [RED LOGO] ,

so that you can select according to your preferences.

You are on the cutting edge in custom,

with this wheel[sized 16×5.5J/6.0J/6.5J].
Pursue the three-dimensional appearance & depth of the disk, we created a separate mold design.



detail1



spec1

sectionDrawing1

*MONO BLOCKはSTEP-RIMのため、RIM深度は同じですがDISKの位置が変わります。

price

WP MAXI MONOBLOCK

SIZE INSET HOLE-P.C.D. HUB DIA BOLT DIA PRICE(+TAX)
16 x 5.5J +45 4-100 φ67 φ15 JPY32,000(+TAX)
16 x 6.0J +45/+39 4-100 φ67 φ15 JPY33,000(+TAX)
16 x 6.5J +45/+38 4-100 φ67 φ15 JPY34,000(+TAX)
16 x 6.5J +35 4-98 φ58 φ13 JPY34,000(+TAX)

*ボルト車両の場合は、ハブセントリックリング(オプション)を同時にご注文ください。
※価格には消費税が含まれておりません。

WP MAXI MULTI PIECE

SUPER LO DISK [17”STEP RIM / 16”FULL REVERSE RIM]

SIZE INSET(RIM DEPTH mm) HOLE-P.C.D. HUB DIA BOLT DIA TYPE PRICE(+TAX)
16 x 6.0J +47(29) +44(32) 4-100 φ67 φ15 60°TAPER JPY60,000(+TAX)
16 x 6.5J +51(32) +38(45) 4-100 φ67 φ15 60°TAPER JPY61,000(+TAX)
16 x 7.0J +53(36) +31(58) 4-100 φ67 φ15 60°TAPER JPY62,000(+TAX)
16 x 8.0J +53(49) +19(83) 4-100 φ67 φ15 60°TAPER JPY64,000(+TAX)
16 x 8.5J +53(55) +12(96) 4-100 φ67 φ15 60°TAPER JPY65,000(+TAX)
16 x 9.0J +53(61) +6(108) 4-100 φ67 φ15 60°TAPER JPY66,000(+TAX)
17 x 6.0J +45(31) +41(35) 4-100 φ67 φ15 60°TAPER JPY66,000(+TAX)
17 x 6.5J +51(32) +35(48) 4-100 φ67 φ15 60°TAPER JPY67,000(+TAX)
17 x 7.0J +53(36) +28(61) 4-100 φ67 φ15 60°TAPER JPY68,000(+TAX)
17 x 7.5J +53(42) +22(73) 4-100 φ67 φ15 60°TAPER JPY69,000(+TAX)
17 x 8.0J +53(49) +16(86) 4-100 φ67 φ15 60°TAPER JPY70,000(+TAX)
17 x 8.5J +53(55) +9(99) 4-100 φ67 φ15 60°TAPER JPY71,000(+TAX)
17 x 9.0J +53(61) +3(111) 4-100 φ67 φ15 60°TAPER JPY72,000(+TAX)
17 x 9.5J +53(68) -3(124) 4-100 φ67 φ15 60°TAPER JPY73,000(+TAX)

*ボルト車両の場合は、ハブセントリックリング(オプション)を同時にご注文ください。
※価格には消費税が含まれておりません。

LO DISK [17”STEP RIM / 16”FULL REVERSE RIM

SIZE INSET(RIM DEPTH mm) HOLE-P.C.D. HUB DIA BOLT DIA TYPE PRICE(+TAX)
16 x 6.0J +38(29) +34(33) 4-98

4-100

5-100

5-112

φ58
(4-98)φ67
(4-100)φ73
(5-100)φ73
(5-112)
φ15
(4-98)φ15
(4-100
5-100
5-112 )
60°TAPER JPY60,000(+TAX)
16 x 6.5J +45(28) +29(44) 60°TAPER JPY61,000(+TAX)
16 x 7.0J +51(29) +21(59) 60°TAPER JPY62,000(+TAX)
16 x 8.0J +53(39) +10(82) 60°TAPER JPY64,000(+TAX)
16 x 8.5J +53(46) +3(96) 60°TAPER JPY65,000(+TAX)
16 x 9.0J +53(52) -3(108) 60°TAPER JPY66,000(+TAX)
17 x 6.0J +36(31) +31(36) 60°TAPER JPY66,000(+TAX)
17 x 6.5J +42(31) +25(48) 60°TAPER JPY67,000(+TAX)
17 x 7.0J +49(31) +18(62) 60°TAPER JPY68,000(+TAX)
17 x 7.5J +53(33) +12(74) 60°TAPER JPY69,000(+TAX)
17 x 8.0J +53(39) +6(86) 60°TAPER JPY70,000(+TAX)
17 x 8.5J +53(46) -1(100) 60°TAPER JPY71,000(+TAX)
17 x 9.0J +53(52) -7(112) 60°TAPER JPY72,000(+TAX)
17 x 9.5J +53(58) -13(124) 60°TAPER JPY73,000(+TAX)

*ボルト車両の場合は、ハブセントリックリング(オプション)を同時にご注文ください。
※価格には消費税が含まれておりません。

MID DISK [17”STEP RIM / 16”FULL REVERSE RIM]

SIZE INSET(RIM DEPTH mm) HOLE-P.C.D. HUB DIA BOLT DIA TYPE PRICE(+TAX)
16 x 6.0J +27(16) +21(22) 5-100 φ73 φ15 60°TAPER JPY60,000(+TAX)
16 x 6.5J +34(15) +16(33) 5-100 φ73 φ15 60°TAPER JPY61,000(+TAX)
16 x 7.0J +40(16) +8(48) 5-100 φ73 φ15 60°TAPER JPY62,000(+TAX)
16 x 8.0J +42(26) -3(71) 5-100 φ73 φ15 60°TAPER JPY64,000(+TAX)
16 x 8.5J +42(33) -10(85) 5-100 φ73 φ15 60°TAPER JPY65,000(+TAX)
16 x 9.0J +42(39) -16(97) 5-100 φ73 φ15 60°TAPER JPY66,000(+TAX)
17 x 6.0J +24(18) +18(25) 5-100 φ73 φ15 60°TAPER JPY66,000(+TAX)
17 x 6.5J +31(18) +12(37) 5-100 φ73 φ15 60°TAPER JPY67,000(+TAX)
17 x 7.0J +38(18) +5(51) 5-100 φ73 φ15 60°TAPER JPY68,000(+TAX)
17 x 7.5J +42(20) -1(63) 5-100 φ73 φ15 60°TAPER JPY69,000(+TAX)
17 x 8.0J +42(26) -7(75) 5-100 φ73 φ15 60°TAPER JPY70,000(+TAX)
17 x 8.5J +42(33) -14(89) 5-100 φ73 φ15 60°TAPER JPY71,000(+TAX)
17 x 9.0J +42(39) -20(101) 5-100 φ73 φ15 60°TAPER JPY72,000(+TAX)
17 x 9.5J +42(45) -26(113) 5-100 φ73 φ15 60°TAPER JPY73,000(+TAX)

6.0J +25 / 6.5J +32 / 7.0J +38以上でDISKがRIMより突出します。
*ボルト車両の場合は、ハブセントリックリング(オプション)を同時にご注文ください。
※価格には消費税が含まれておりません。





variations

BLACK

colorMaxBlack





GOLD

colorMaxGold





WHITE

colorMaxWhite





MAT HYPER

colorMaxMat





RED CLEAR

colorMaxRed





SMOKE CLEAR

colorMaxSmoke





BRUSHED

colorMaxBrushed



DISK COLOR SEPARATE ACCOUNT
PRICE(+TAX)
BLACK STANDARD
GOLD +JPY5,000(+TAX)
WHITE +JPY5,000(+TAX)
MAT HYPER +JPY10,000(+TAX)
RED CLEAR +JPY10,000(+TAX)
SMOKE CLEAR +JPY10,000(+TAX)
BRUSHED +JPY12,000(+TAX)

※価格には消費税が含まれておりません。



17″ STEP RIM(DAG LIP)

rimColorMin16BuffrimColorMin16BlackrimColorMin16BronzerimColorMin16Cut

BUFF                              BLACK                        BRONZE                  CUT
ANODIZED                   ANODIZED               ANODIZED              ANODIZED



16″ FULL REVERSE RIM(DAG LIP)

rimColorMin17BuffrimColorMin17BlackrimColorMin17BronzerimColorMin17Cut

BUFF                             BLACK                        BRONZE                   CUT
ANODIZED                  ANODIZED               ANODIZED              ANODIZED



MULTI PIECE ONLY

RIM COLOR SEPARATE ACCOUNT
PRICE(+TAX)
BUFF ANODIZED STANDARD
BLACK ANODIZED +JPY18,000(+TAX)
BRONZE ANODIZED +JPY18,000(+TAX)
CUT ANODIZED +JPY18,000(+TAX)

※価格には消費税が含まれておりません。

accessories1

accessories2

STANDARD PARTS

PARTS PRICE(+TAX)
CENTER CAP
[SATIN CHROME]
RED LOGO & SMOKE LOGO SET
JPY2,000(+TAX)
L-TYPE VALVE[MULTI PIECE] JPY2,400(+TAX)
STRAIGHT VALVE[MONO BLOCK] JPY1,500(+TAX)

※価格には消費税が含まれておりません。

OPTIONAL PARTS

PARTS PRICE(+TAX)
CENTER CAP
[GROSS BLACK]
RED LOGO & SMOKE LOGO SET
JPY2,000(+TAX)
BOLT 17HEX-M12x1.5-28mm(5個入) JPY3,500(+TAX)
BOLT 17HEX-M14x1.5-28mm(5個入) JPY3,500(+TAX)
BOLT 17HEX-M14x1.5-35mm(5個入) JPY3,500(+TAX)
HUB CENTRIC RING
φ67→φ60.1(RENAULT) JPY600(+TAX)
φ73→φ57(VW/AUDI) JPY800(+TAX)
φ73→φ66.5(BENZ/AUDI) JPY800(+TAX)
φ67→φ56(BMW MINI) JPY800(+TAX)
φ67→φ57(VW/AUDI) JPY800(+TAX)

※価格には消費税が含まれておりません。
